Rear Tine Tiller (Tines Install)

This bulletin covers the following models: 100380. Please read the instructions carefully and completely before performing service. The left and right tines come pre-assembled. They simply slide onto…

Juan Velez
Updated by Juan Velez

This bulletin covers the following models: 100380.

Please read the instructions carefully and completely before performing service.

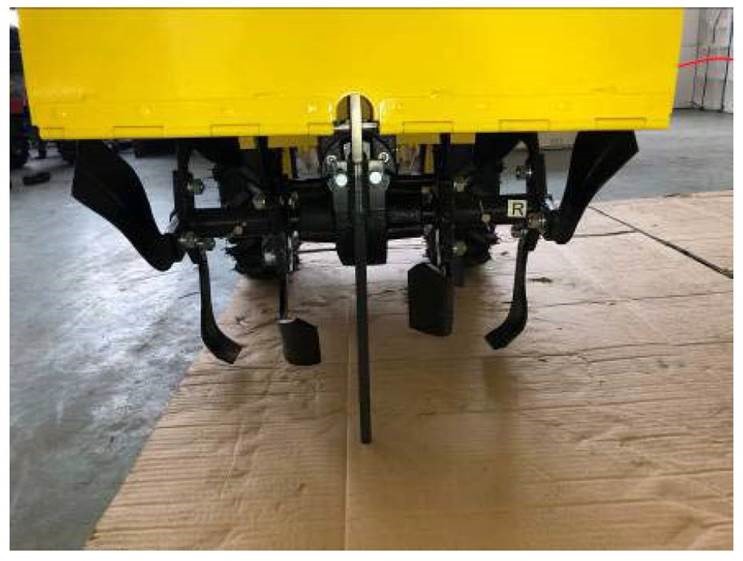

The left and right tines come pre-assembled. They simply slide onto the drive axle and are put together from the user control position left – left, right – right.

Visual
See below.

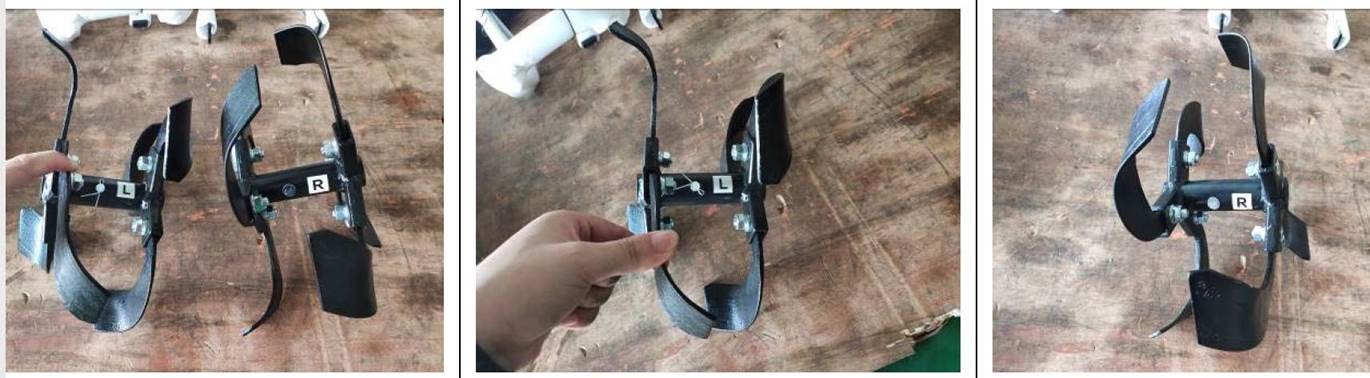

Each flight has different bends in the tine (2 out 1 in.) for each side.

Visual
See below.
