Intelligauge

Updated 1 month ago by Juan Velez

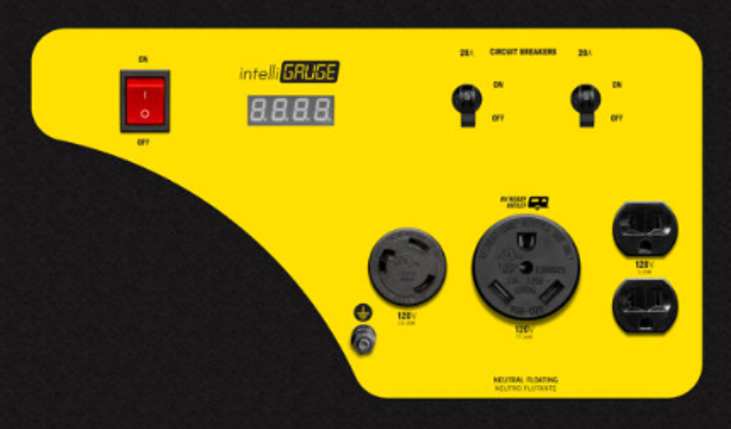

This style intelligauge cycles through four modes: voltage, frequency, lifetime running hours, and current session run time; resets on shutdown of the generator are approximately five seconds each.

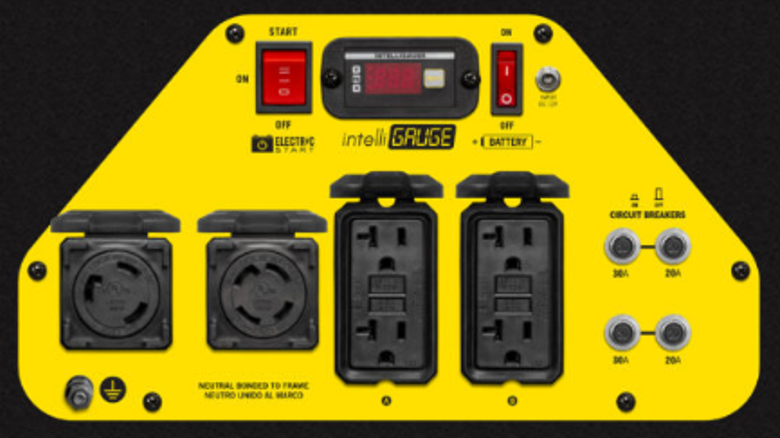

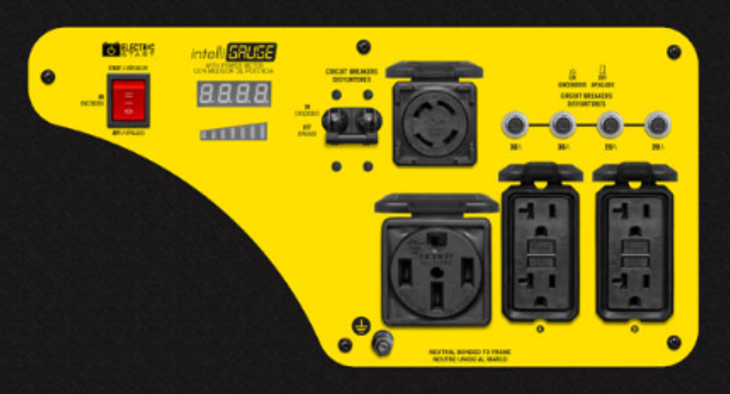

This intelligauge cycles through four modes: voltage, frequency, lifetime running hours, and current session run time; resets on shutdown of the generator are approximately five seconds each.The bar graph below the display shows the power output level. When the user reaches maximum output for the generator, the last bar on the graph will display as red.

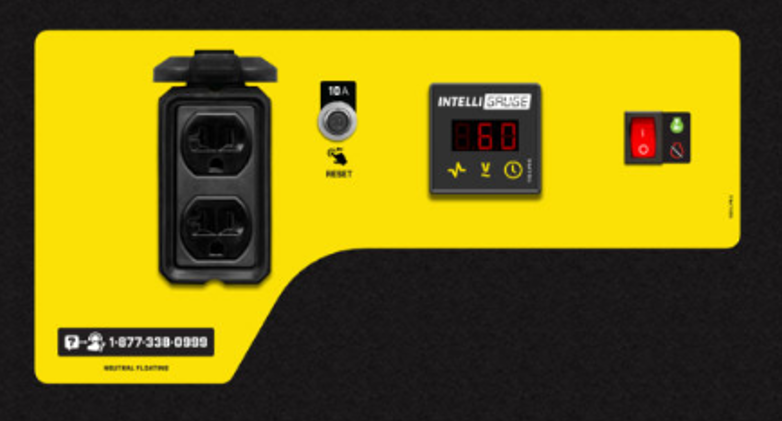

This intelligauge cycles through three modes with the push of the black round button: voltage, frequency, and lifetime hours of the generator.

This intelligauge cycles through three modes with the push of the white square button: voltage, frequency, and lifetime hours of the generator.

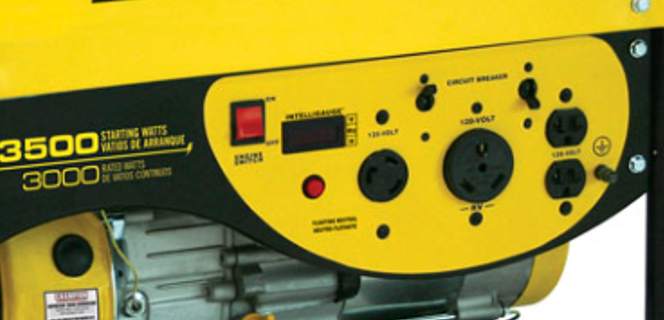

This intelligauge cycles through three modes with the push of the corresponding yellow button: voltage, frequency, and lifetime hours of the generator.

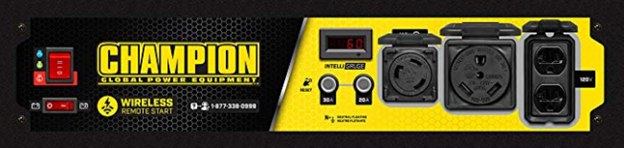

This intelligauge cycles through three modes with the push of the round red button below the display: voltage, frequency, and lifetime hours of the generator.
