Rocker Switch and Solenoid Installation for ATV Winches

Updated by Juan Velez

Please read the instructions carefully and completely before performing the service.
SAFETY PRECAUTIONS

  • To reduce the risk of injury, user must read and understand the operator’s manual before using this product.
  • DO NOT make any adjustments to the product without first stopping it.
  • Injury from moving parts.

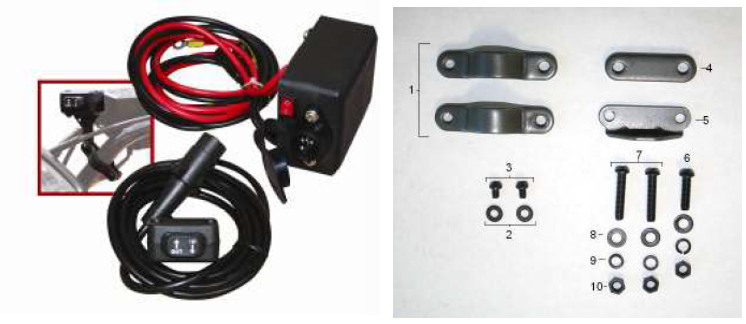

Visual
See below.
  1. Attach switch base plate (#5) to the bottom of the rocker switch using bolts (#3) and washers (#2).
  2. Using bolt (#6), attach extension plate to plate (#5) with (#6) and one washer, lock washer, and nuts (#8, 9, 10).
  3. Place one handle bar plate (#1) on each side of the extension plate and place one bolt (#7) through all three plates with a washer and lock washer. Place the nut on the bolt (DO NOT tighten the nut).
  4. Position handle bar plates around the handle bar where mounting is preferred and plate bolt (#7) through the plates along with washers and nuts (#8, 9, 10).
  5. Tighten the nuts from steps 3 and 4.
